Sheet Metal Tab And Slot Tolerances

Following all sheet metal design guidelines is very difficult in the complex part.

Sheet metal tab and slot tolerances.

When designing parts for laser cutting one should not make holes smaller than the thickness of the material. In situations where tabs are mating with a slot for weld fixturing give yourself as much width and length on the slot as possible. Sheet metal design guidelines are followed to design quality sheet metal enclosures. Therefore exceptions can be there for complex features design.

0 304mm from top of sheet to top of form and recommend an offset of 0 030 in. Grain structure in the metal sheet is critical for avoiding cracks in sheet metal parts with lugs or tabs that are cut on three sides and bent in or out. Bends in sheet metal are manufactured using sheet metal brakes. Be mindfull if you have tabs on adjacent bends when the part is bent wrong it may or may not fit in all of the slots anymore.

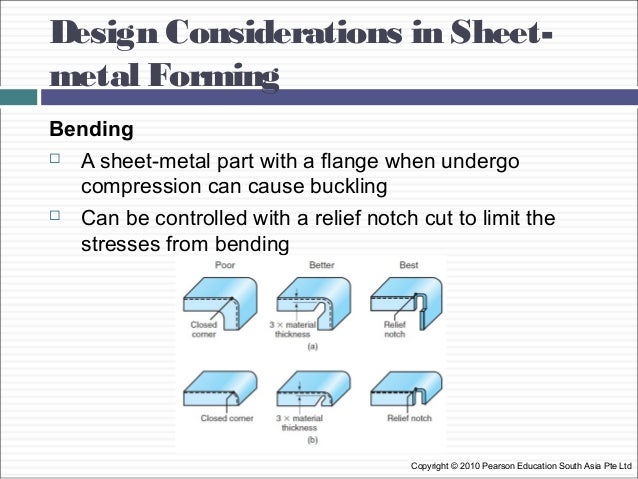

This helps in delivering the product at low cost and faster timelines. Relief cuts help parts avoid overhangs and tearing at. A 1 degree tolerance on all bend angles. And chamfers provide allowable tolerance in alignment reducing time spent in assembly.

Sheet metal has a tradition of creating self locating assemblies. The engineer s tight tolerances. I make a lot of weldments and sheet metal parts that are 12ga to 1 2in thk i use 1 32 per side for the slot. Laser cutting tutorial prepping tab and slot for laser cutting how to dress out slots an on demand laser cutting tutorial.

Offsets are used to create z shaped profiles in sheet metal parts. We offset height tolerance at 0 012 in.
