Spectral Response Of Solar Panels

On earth sunlight is scattered and filtered through earth s atmosphere and is obvious as daylight when the sun is above the horizon when direct solar radiation is not blocked by clouds it is experienced as sunshine a combination of bright light and radiant heat.

Spectral response of solar panels.

A spectral response curve is shown below. Spectral response is the ratio of the current generated by the solar cell to the power incident on the solar cell or a detector. Sunlight is a portion of the electromagnetic radiation given off by the sun in particular infrared visible and ultraviolet light. The solar spectrum is presumed by using measurement irradiance and it proposes the calculation method of irradiance corresponding to the spectral response of the solar module by using the spectrum.

Spectral response units of a w is a function of wavelength and is related to the quantum efficiency qe unitless as follows. This paper investigates the influence of the spectral irradiance variation and the spectral response sr on the production of energy by photovoltaic cells. For the computational simulations of the. Although the spectral effects of direct and diffuse radiation on solar photovoltaic pv performance are relatively well understood recent investigations have shown that there can be a spectral bias introduced due to albedo from common ground surfaces that can impact the optimal selection of pv materials for a known location.

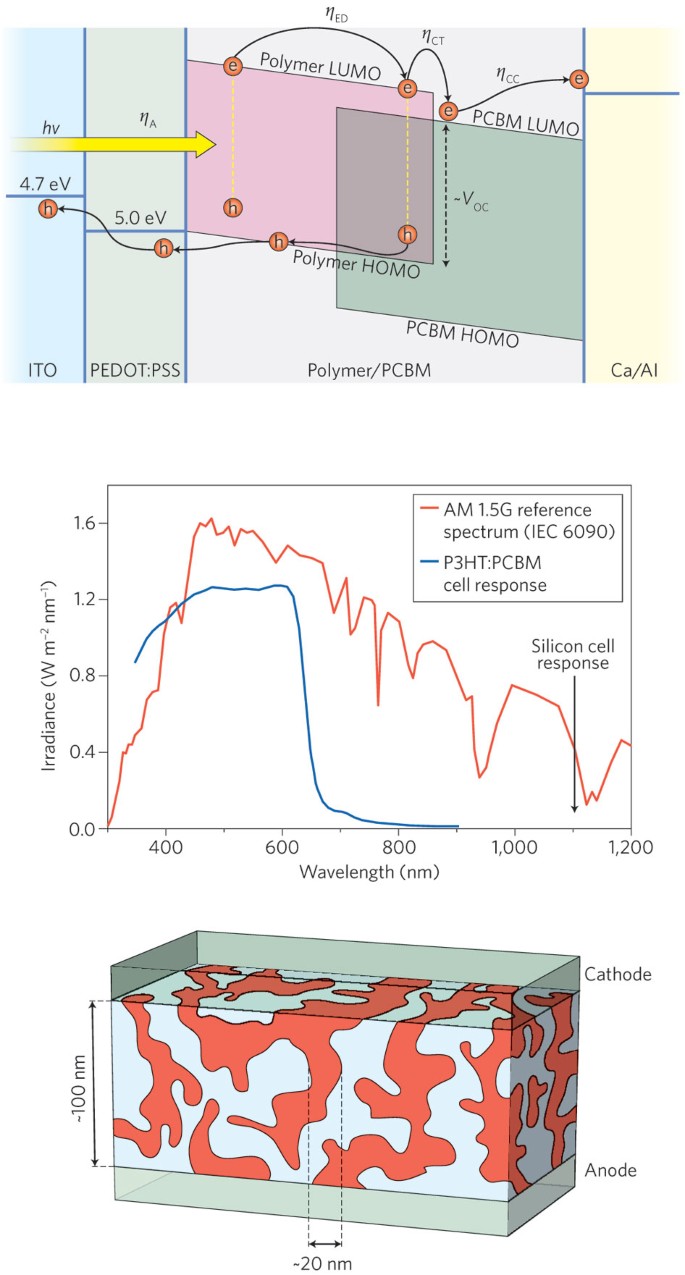

Spectral response measurement apparatus measures short circuit current of solar cell at selected wavelengths over a broad range of wavelengths. 5 second highest after sunpower x series of over 3 200 silicon solar panels photon module survey feb 2014. In each case the absorptive response black curve is superimposed on the solar spectrum gray curve. Year 1 energy advantage watt spectral response.

The quantum efficiency gives the number of electrons output by the solar cell compared to the number of photons incident on the device while the spectral response is the ratio of the current generated by the solar cell to the power incident on the solar cell. To determine the impact of sr and spectral irradiance on m si and perovskite cells experimental tests were conducted outdoors used optical filters to select different zones of the spectrum. The spectral response sr of a pv device is the fraction of available irradiance that is converted into current.
