Spring Curved Roofing

Spandek longline 305 custom orb accent custom orb and custom blue orb can be spring curved for an arched roof.

Spring curved roofing.

Cgi corrugated roofing may be spring curved using purlins at a maximum spacing of 800mm for 42mm bmt and 1000mm for 48mm bmt. The maximum radius is 35m to allow for sufficient drainage over a crest. 4 2 spring arched roof sheets in a spring arched convex roof are curved in a radius from eave to eave. The top face of all purlins must accurately follow and.

The variety of profiles and spring curved shapes gives considerable scope for innovative architecture. Table 4 2 1 shows the acceptable radii. Full length sheeting can be laid from eave to eave and spring curved between the ridge purlins. This is required at the roof crest where the slope is less than the recommended minimum for.

4 0 curved bent tapered cladding 20 4 1 spring curved ridge roof 20 4 2 spring arched roof 21 4 3 spring curved concave roofs 22 4 4 pre curved sheets 22 4 5 capped bent ribbed roofs 23 4 6 tapered roofing 23 5 0 insulation skylights 24 5 1 heat control 24 5 2 condensation 25 5 3 noise reduction 26. Curving quality available in g300 steel for architectural roofs or bullnosing. Faceting is the tendency of. It is suited to symmetrical roofing profiles of low rib height which can follow a curve without excessive panning or distortion.

The wide range of curved corrugated roofing sheets produces an eye catching modern contrast to the straight lines of most standard straight sheeting roof projects. Fully tested a full range of load performance tables to suit most applications. The side laps of convex roofs are to be sealed using a recommended sealant. All metal roofing products are susceptible to faceting.

Designers need to be aware however of some effects that can occur with spring curving that are sometimes seen when viewed close up. On lower pitch roofing the process of spring curved ridges eliminates the need for ridge capping. The curve must have a minimum radius of 12m for 42mm bmt and 10m for 48mm bmt. This guide has information designed primarily for convex spring curving over an apex.

This process eliminates the possibilities of leakage caused by a break in the sheeting at the ridge providing a neat and cheap alternative to ridge. Spring or drape curving is the name given to the roof installation process whereby straight sheets of roofing are fastened to a curved structure without prior curving of the sheets. Spring curving ideal for curved roofs. Curved roofing sheets are so incredibly versatile and add a special touch of elegance to any roof profile.

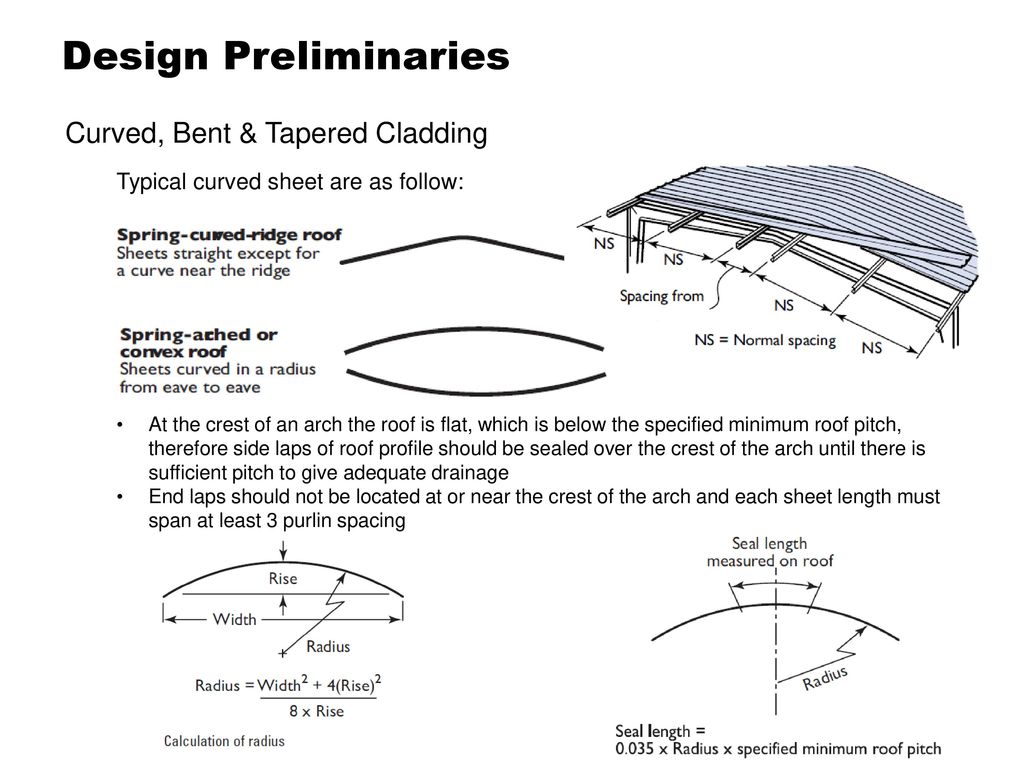

Using the overall width plus the rise of a convex roof the radius of curvature can be calculated using the equation shown in the diagram below.
