Src Roof Rack Installation Instructions

If re installing factory bumper proceed to step 16 before moving on 6.

Src roof rack installation instructions.

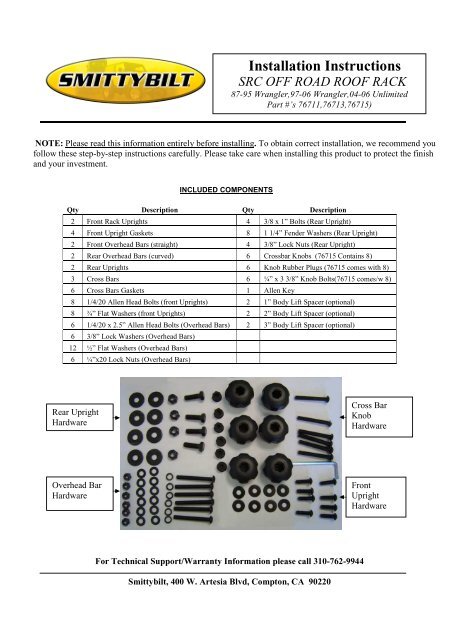

If re installing factory bumper proceed to step 16 before moving on 6. Align roof rack properly then tighten all hardware. Insert the bolts with flat washers through the rear bumper. Installation instructions src off road roof rack 87 95 wrangler 97 06 wrangler 04 06 unlimited part s 76711 76713 76715 5.

2 diameter 0 120 wall thickness steel tubes with heavy duty 3 16 1 4 brackets provide sturdy 4 point mounting support with cross bars designed for most aftermarket accessories that are removable to allow easy soft or hard top removal. Front upright instalation instructions. Do not install the nuts at this time. How to install smittybilt src roof rack 300 lb rating black textured on your 1997 2006 wrangler how to install smittybilt src roof rack 300 lb rating black textured on your 1997 2006 wrangler.

Remove the factory rear bumper and bolts. Of cargo with the src roof rack system. Src roof rack 76715 by smittybilt. Carry aftermarket accessories from thule and yakima on your jeep or up to 300 lbs.

Do not install the nuts at this time. Installation instructions src off road roof rack 87 95 wrangler 97 06 wrangler 04 06 unlimited part s 76711 76713 76715 5. Repeat steps 12 and 13 for the rest of the basket holder cross rails. Place the adhesive backed gaskets on the front uprights to protect the vehicle from scratches.

Install extra 8x 65mm bolt nut into holes that cross bars are not attached too. Install bars in needed locations. Src roof rack constructed from high quality steel tubing and supported with heavy duty bracketry the smittybilt src roof rack system provides extreme toughness confident stability and superb convenience making it the complete package. Do periodic inspections to the installation to make sure all hardware is secure and tight.
